Raven Dish Spare Parts and Extras.
1.2m Feed support arms Feed support clamp Wall mount Stainless steel, Ku/C Band feed support clamp Ku Band feedhorn Transition
AZEL mount Polar mount / motor, Inclined orbit motor, Wall mount., Ground stand, Non-penetrating ground stand, Heater de-icer.
1.8m Feed support arms Feed support clamp Wall mount Stainless steel, Ku/C Band feed support clamp Ku Band feedhorn Transition
AZEL mount, Polar mount / motor, Inclined orbit motor, Ground stand, Pole adapter Non-penetrating ground stand, Heater de-icer.
2.4m Feed support arms Ku band feed support clamp Stainless steel, Ku/C Band feed support clamp Ku Band feedhorn Transition
AZEL mount, Polar mount / motor, Inclined orbit motor, Ground stand, Pole adapter Non-penetrating ground stand, Heater de-icer.
For 1.2m, 1.8m and 2.4m Multifeed bracket. Fit 3 LNBs on the dish.

Arms for the Raven 1.2m dish.



These arms are included when you buy the Raven dish but if you have an old Channel Master (or Andrews)
or Raven dish (Skyware Global) and the arms need replacing they are available separately here.
These are the 3 arms which go between the dish reflector and the LNB feed support clamp.
Please note the picture shows the arms for the 1.8m dish but the 1.2m arms are shorter but similar.

Click here to order.

Arms for the Raven 1.8m dish.



These arms are included when you buy the Raven dish but if you have an old Channel Master (or Andrews)
or Raven dish (Skyware Global) and the arms need replacing they are available separately here.
These are the 3 arms which go between the dish reflector and the LNB feed support clamp.

Click here to order.

Arms for the Raven 2.4m dish.



These arms are included when you buy the Raven dish but if you have an old Channel Master (or Andrews)
or Raven dish (Skyware Global) and the arms need replacing they are available separately here.
These are the 3 arms which go between the dish reflector and the LNB feed support clamp.
Please note the picture shows the arms for the 1.8m dish but the 2.4m arms are longer but similar.

Click here to order.

Also see the special arms platform for the Viking motorised feedhorn.

Raven feed support boss. (LNB bracket)



This is the feed support clamp that fits on the ends of 3 arms of the Raven (Skyware Global)
(formally Andrews and before that Channel Master) 90cm, 1.0m, 1.2m 1.8m and 2.4m offset dishes.
This is a 40mm clamping LNB support boss and it comes with 40mm to 23mm spacers.
Bolts nuts and washers are included.

Raven feedhorn support boss assembly. (Feedhorn LNB bracket)
In stock and ready for immediate shipping

Click here to order.

C Band and Ku Band Stainless Steel
Feed Support Boss for Raven Dish.



A very strong support clamp for several uses, C Band, Ku Band, 60mm, 40mm and 23mm
(providing you have the 23mm spacer which comes with the Raven feedhorn).
Designed for the Raven fibre glass offset dishes, 0.9m, 1.0m, 1.2m, 1.8m and 2.4m
Note, Raven dishes were formerly "Andrews" and before that "Channel Master".
This is a high quality stainless steel bracket / feed support boss for C Band LNBs which have an offset feedhorn. (60mm)
It comes with extra parts so that a Raven Ku band feedhorn or Ku Band LNBF (universal LNB) can also be fitted. (40mm)
At last a very high quality product made from stainless steel for fitting C band LNBs onto the Raven offset dish.

Click here to order.

Raven offset feedhorn



Raven - Formerly "Andrews" and before that "Channel Master".
The 23mm to 40mm spacers are included.
Raven feedhorn for all Raven (Andrews or Channel Master) offset dishes from 1.0m to 2.4m. Highly recommended
for Raven (Andrews / Channel Master) 1.2m, 1.8m and 2.4m dishes. Use this feedhorn with a C120 flange LNB for
better matching and improved signal to noise ratio compared to a 40mm clamp LNB of equivalent (or lower) noise level.
Why buy a high quality Raven (Andrews / Channel Master) dish and use a compromise 40mm mass market LNB which has
a universal feedhorn / cap and is not designed for a particular dish? Taking a 1.2m dish as an example. A 40mm LNB
may only illuminate 1.1m of dish area (not enough) or perhaps 1.3m of dish area (i.e. including noise around the edges).
With a matched feedhorn, exactly 1.2m of dish area is illuminated. This feedhorn is for offset dishes and can also
be used on other makes of offset dish. It comes with adapters for either 23mm or 40mm clamps. Designed to be
used with C120 flange universal LNBs (see below.) The picture below shows the feedhorn on a 1.8m Raven dish in Spain.
Customers have also reported excellent results when the Raven feedhorn was used with a Gibertini 1.5m dish.
Dish spare part - the plastic 40mm clamp Raven feed support boss which holds the feedhorn or LNB is also available.



Click here to order.

c120 flange to WR 75 flange
waveguide transition.



This is used in single polarity systems. Often used with Norsat LNBs so that the rectangular
single polarity flange on the LNB is converted to the circular the c120 flange of a c120 feedhorn.
Bolts nuts and washers and O ring are included.
In stock and ready for immediate shipping.

Click here to order.

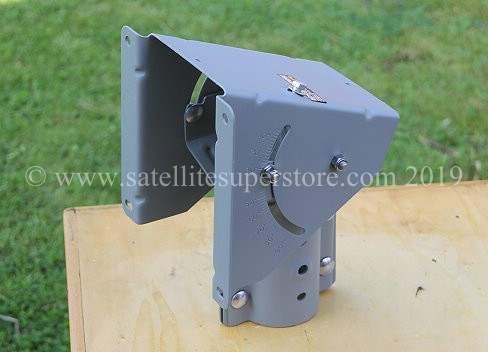

Raven 1.2m AZEL fixed mount.





A fixed AZEL mount for the back of the Raven 1.2m dish is available separately.
The mount fits on the back of the Raven 1.2m dish face and the collar fits a 76mm (3.0-inch) pole or ground stand.

Click here to order.

Raven 1.8m AZEL fixed mount.



A fixed AZEL mount for the back of the Raven 1.8m dish is available separately. It is now galvanised.
The mount fits on the back of the Raven 1.8m dish face and the collar fits a 4.5 inch pole or ground stand.

Click here to order.

AZEL mount for Raven 2.4m dish.



Heavy duty Raven AZEL mount. Designed to fit a 6.5 inch pole or ground stand.
Please note the bolts to bolt it onto the dish (hardware kit) are not included but can be ordered separately.

Click here to order.

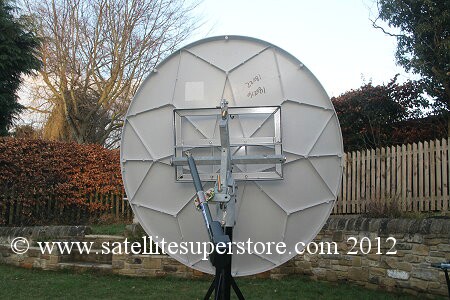

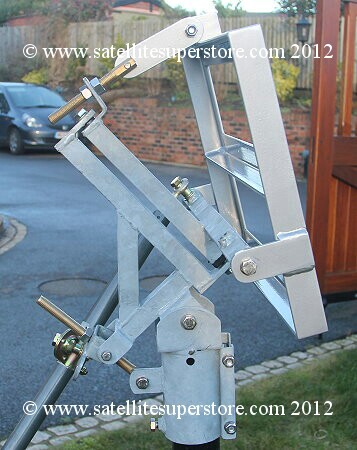

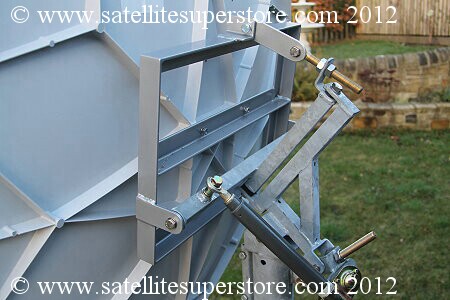

Primesat heavy duty 36V Mk 4 motor for
Raven (Andrews / Channel Master)
90cm, 1.0m and 1.2m dishes.





Designed for the 1.2m Raven dish - Primesat CH12MK4 heavy duty polar mount and actuator.
The new Mk 4 has been completely redesigned compared to earlier versions. This mount is produced by our sister company
www.primesat.eu for the Satellite Superstore. It is designed for the 1.2m Raven dish (dish not included). This mount
is very well designed. The dish stands close to the pole (well balanced). With this latest Mk 4 version, the mount is a
close and well balanced assembly. The framework is very strong and well-engineered. Fine adjustment is easy with a spanner.
Primesat CH12MK4 heavy duty polar mount and actuator. The polar mount is "dipped galvanised". The "dish back plate frame"
is etch primed, primed, top coated and baked in an oven to provide a durable finish. The rest of the mount including the collar is
dipped galvanised. All of the nuts and bolts are made of stainless steel except the main elevation and declination adjusters which
are made of brass. The polar mount includes a frame that is designed to fit on the back of the Raven 1.2m dish using the 4 bolts
that come with the Raven dish. An optional, genuine Superjack 18" actuator is available. Weight of polar mount 15Kg.
Weight of 18-inch actuator 6Kg. Total weight 21Kg. This polar mount motor unit is designed to clamp onto a 76mm (3-inch)
diameter pole. An ideal ground stand is the Primesat GS761FW3 stand. An ideal wall mount is the Primesat WMS45076
mount. Note - Raven dishes were formally Andrews dishes and before that Channel Master. 4 core motor control cable for
this motor can be found on the cable page. This heavy duty polar mount and actuator can take high wind loads.

Click here to order.

Primesat heavy duty 36V motor for Raven
(Andrews / Channel Master) 1.8m dishes.



This mount is produced by our sister company www.primesat.eu for the Satellite Superstore. It is designed for the 1.8m Raven dish
(dish not included). Primesat CH18MK2 heavy duty polar mount and actuator. Latest Mk2 version. The polar mount is mostly
"dipped galvanised". The "dish back plate frame" is etch primed, primed, top coated and baked in an oven to provide a durable
finish. The rest of the mount including the collar is dipped galvanised. All of the nuts and bolts are made of stainless steel
except the main elevation and declination adjusters which are made of brass. The polar mount includes a frame that is designed
to fit on the back of the Raven 1.8m dish using the 4 bolts which come with the Raven dish. An optional, genuine heavy duty
Superjack 18" actuator is available. Weight of polar mount 29Kg. Weight of 18-inch actuator 8Kg. Total weight 37Kg.
This polar mount motor unit is designed to clamp onto a 76mm (3-inch) diameter pole. An ideal ground stand is the
Primesat GS76125 stand. Note - Raven dishes were formally "Andrews dishes" and before that "Channel Master".
4 core motor control cable for this motor can be found on the cable page. This heavy duty polar mount and
actuator can take high wind loads. An inclined orbit version of this polar mount is available below.

Click here to order.

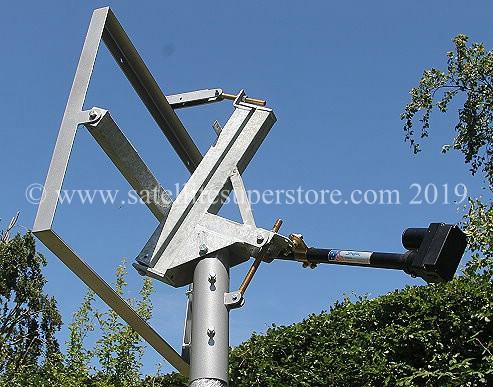

Primesat heavy duty 36V motor for Raven
(Andrews / Channel Master) 2.4m dishes.




This mount is produced by our sister company www.primesat.eu for the Satellite Superstore. It is designed for the 1.8m Raven
dish (dish not included). "Primesat CH24100 heavy duty polar mount and actuator". The polar mount is mostly "dipped galvanised".
The "dish back plate frame" is etch primed, primed, top coated and baked in an oven to provide a durable finish. The rest of
the mount including the collar is dipped galvanised. All of the nuts and bolts are made of stainless steel except the main
elevation and declination adjusters which are made of brass. The polar mount includes a frame that is designed to fit on the
back of the Raven 2.4m dish using the 4 bolts that come with the Raven dish. An optional, genuine heavy duty
Superjack 36" actuator is available. Weight of polar mount 47Kg. Weight of 36-inch actuator 8Kg. Total weight 55Kg.
This polar mount motor unit is designed to clamp onto a 100mm (4-inch) diameter pole. An ideal ground stand is the
Primesat GS10016 stand. Note - Raven dishes were formally "Andrews dishes" and before that "Channel Master".
An inclined orbit 2 motor polar mount for the Raven 2.4m dish is also available. See below.
4 core motor control cable for this motor can be found on the cable page.
This is the new Mk 2 motor. A stronger, longer collar with better bolt fixings holding
the new Mk 2 polar mount very securely to the pole.

Click here to order.

Primesat heavy-duty 36V inclined orbit motor
for Raven (Andrews / Channel Master)
90cm, 1.0m and 1.2m dishes.



Designed for the 1.2m Raven dish - Primesat heavy duty inclined orbit polar mount with actuators
The is the inclined orbit version of our successful polar mount above. This mount is produced by our sister company
www.primesat.eu for the Satellite Superstore. It is designed for the 1.2m Raven dish (dish not included). This mount
is very well designed. The dish stands close to the pole (well balanced). With this latest version, the mount is a
close and well balanced assembly. The framework is very strong and well engineered. Fine adjustment is easy with a spanner.
Primesat CH12INC heavy duty polar mount and actuator. The polar mount is "dipped galvanised". The "dish back plate frame"
is etch primed, primed, top coated and baked in an oven to provide a durable finish. The rest of the mount including the collar is
dipped galvanised. All of the nuts and bolts are made of stainless steel except the main elevation adjuster which is
made of brass. The polar mount includes a frame which is designed to fit on the back of the Raven 1.2m dish using the 4 bolts
which come with the Raven dish. An optional, genuine Superjack 18" actuator and a genuine Superjack 12" HS actuator
are both available. Important - please note this is a special 8-pole magnet / actuator providing twice the resolution for
fine vertical adjustment. Weight of polar mount 15Kg. Weight of 18-inch actuator 6Kg. Weight of 12-inch actuator 4Kg.
Total weight 25Kg. This polar mount motor unit is designed to clamp onto a 76mm (3-inch) diameter pole. An ideal
ground stand is the Primesat GS761FW3 stand. An ideal wall mount is the Primesat WMS45076 mount.
Note - Raven dishes were formally Andrews dishes and before that Channel Master. 4 core motor control cable for
this motor can be found on the cable page. This heavy duty polar mount and actuator can take high wind loads.

Click here to order.

Primesat heavy duty inclined orbit motor
for Raven (Andrews / Channel Master)
1.8m dishes. (2 actuators)





Inclined orbit polar mount with two actuators. Two positioners required.

Suitable for tracking inclined orbit satellites. This mount is produced by our sister company www.primesat.eu for the
Satellite Superstore. It is designed for the 1.8m Raven dish (dish not included).
Primesat CH18IO2 heavy duty polar mount with actuators. Latest Mk2 version. The polar mount is mostly
"dipped galvanised". The "dish back plate frame" is etch primed, primed, top coated and baked in an oven to provide a durable
finish. The rest of the mount including the collar is dipped galvanised. All of the nuts and bolts are made of stainless steel
except the main elevation and declination adjusters which are made of brass. The polar mount includes a frame that is designed
to fit on the back of the Raven 1.8m dish using the 4 bolts which come with the Raven dish. Quality genuine heavy duty
Superjack 18" actuator and Superjack 12" HS actuator are included. Weight of polar mount 29Kg. Weight of actuators 12Kg.
Total weight 41Kg. This polar mount motor unit is designed to clamp onto a 76mm (3-inch) diameter pole. An ideal ground
stand is the Primesat GS76125 stand. Note - Raven dishes were formally "Andrews dishes" and before that "Channel Master".
4 core motor control cable for this motor can be found on the cable page. This heavy duty polar mount and
actuator can take high wind loads. Please note, a Primesat EZ-2000 positioner is needed for the vertical jack.

Click here to order.

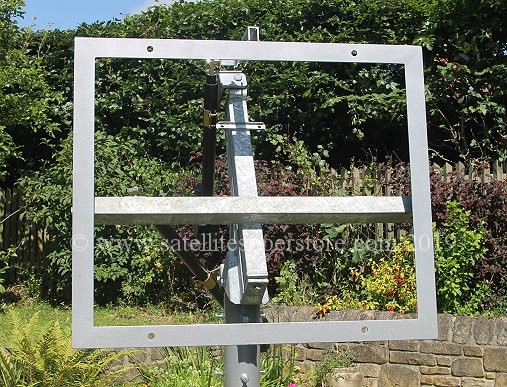

Primesat heavy duty inclined orbit motor
for Raven (Andrews / Channel Master)
2.4m dishes. (2 actuators)



See above the new Mk 2 motor. A stronger, longer collar with better bolt fixings holding
the new Mk 2 polar mount very securely to the pole.

Click here to order.

Wall mount for the 1.2m Raven
fixed or motorised dish



550mm stand off. Heavy duty range.
The 550mm version looks similar to a 450mm (above) but has an extra 100mm of stand off which is required for larger dishes.
76mm (3") diameter mast. 550mm stand-off. 10 bolt fixing, 4 to the left, 4 to the right and 2 to the bottom. Coach bolts
and plugs for fixing on the wall are available from the installation items page. (10 required). Black mount with galvanised pole
and 3 galvanised clamps included. The mount is etch-primed with then oven baked powder coated.
Please note the mounts are now "bolt together" Just as strong but easier and less costly to ship via mail order. These motors
will fit on a 76mm pole. Manufactured by the Satellite Superstore. An exclusive high quality product.
(Note 1. Mast is 500mm) (Note 2. The Raven 1.2m dish was formally known as "Andrews and before that "Channel Master").

Click here to order.

Wall mount for the 1.2m Raven
fixed or motorised dish





450mm stand-off. Heavy duty range.
Usually for north, east or west facing walls in locations where there is a gutter and a larger stand-off distance is required.
76mm (3") diameter mast. 450mm stand-off (to clear gutter). 2m pole with 3m pole options.
The bottom left picture shows an earlier 3m pole version which did not have a galvanised pole and with a 550mm stand-off.
(The 76mm diameter pole is now galvanised.) Note this picture shows a 1.2m Raven dish at the top.

Click here to order.

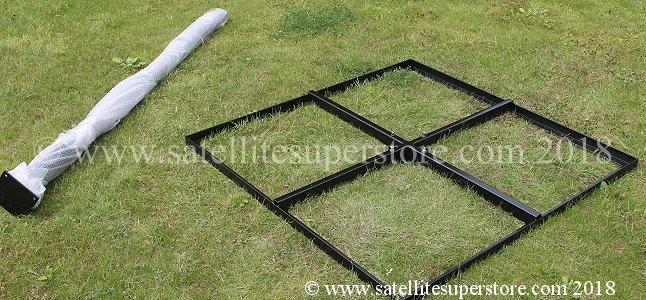

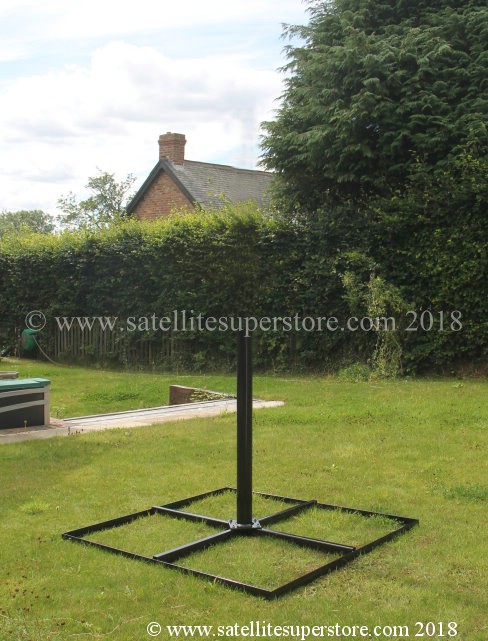

Ground stand for the 1.2m Raven
fixed or motorised dish





Available fully welded or bolt together.
The stand is a fully welded heavy gauge steel construction It uses 3 adjustable feet. (and 3 optional additional feet). It
can easily be adjusted for "plumb" with a spanner (Thinking of putting a pole into concrete? How could you adjust it if
subsidence makes it go off plumb?) The feet are made of heavy gauge steel and the stud is tapped right through the steel
plate and then welded. For up to 1m dishes use three heavy duty feet. For 1.2m+ dishes use 6 feet) (The 3 feet are bolted
down with 6 coach bolts and plugs.) (The 6 feet are bolted down with 12 coach bolts and plugs.) The height is 1m and the
pole diameter is 76mm (3-inches). Ideal for the 1.2m Raven dish. For dishes larger than 1.5m needing a 76mm pole
see our 1.25m high stand below which has a much larger base area. We manufacture these ground stands and they are
exclusive to the Satellite Superstore. The stand is etch-primed with an oven baked final coating. A high quality product.
Coach bolts and plugs for fixing to the ground are available from the installation items page.
(6 or 12 required) It is possible to buy this stand as a bolt together unit (more suitable for international shipping).
A non penetrating mount for this dish is available below.

Click here to order.

Ground stand for the Raven 1.8m
fixed dish





(The Raven dish used to be made by "Andrews" and before that "Channel Master".)
Manufactured by the Satellite Superstore. Designed for the 1.8m fixed Raven dish It is 1.25m
high and uses a 115mm (4.5") pole. Heavy 6mm thick angle is used along the base and the angle dimensions are 60mm
by 60mm. There are 12 holes for fixing down to concrete or paving. 4 in each angle. See bottom right picture. It is
etch-primed and painted black. The final coat of paint is baked and oven dried. The stand is bolted together to
make it easy to ship. A fully welded stand of this size could not be transported with a courier and would need an
(expensive) haulage company, so this stand bolts together. Multiple bolts are used for maximum rigidity. The stand
is heavy but it needs to be. The pictures above were taken in the rain so dots on the paintwork are just rain drops.
Designed for the 1.8m Raven dish, we have manufactured this stand since 1991.
The motorised 1.8m Raven dish needs a pole diameter of 80mm and that stand is below.
Coach bolts and plugs for fixing the ground are available from the installation items page.
A non penetrating mount for this dish is available below.

Click here to order.

Ground stand for the Raven 1.8m
motorised dish





(The Raven dish used to be made by "Andrews" and before that "Channel Master".)
Manufactured by the Satellite Superstore. This stand is 1.25m high and uses a 76mm (3.0") pole. Heavy
6mm thick angle is used along the base and the angle dimensions are 60mm by 60mm. There are 12 holes for fixing down
to concrete or paving. 4 in each angle. See bottom right picture. It is etch-primed and pained black. The final coat
of paint is baked and oven dried The stand is bolted together to make it easy to ship. A fully welded stand of this
size could not be transported with a courier and would need a (expensive) haulage company, so this stand bolts together.
Multiple bolts are used for maximum rigidity. The stand is heavy but it needs to be.
This stand is designed for our motorised version of the 1.8m Raven dish but could be used for other applications.
The motorised 1.8m dish needs an 80mm pole and this pole is 76mm. It will fit onto this pole but a better fit is achieved
if the 76mm - 80mm pole spacer (shim) is used. Coach bolts and plugs for fixing the ground are available from the
installation items page. This is a special order item. It is manufactured for the customer when an order
is placed. Allow up to 5 working days to manufacture this stand.
A non penetrating mount for this dish is available below.

Click here to order.

Ground stand for the Raven 2.4m
fixed dish



(The Raven dish used to be made by "Andrews" and before that "Channel Master".)
Manufactured by the Satellite Superstore. It is 1.6m high and uses a 6.5" pole. There are 24 holes
for fixing down to concrete or paving. 8 in each corner. It is etch-primed and pained black. The final coat of paint is baked
and oven dried. The stand is bolted together to make it easy to ship. A fully welded stand of this size could not
be transported with a courier and would need a (expensive) haulage company, so this stand bolts together. Multiple bolts
are used for maximum rigidity. The stand is heavy but it needs to be. This stand is designed for the 2.4m fixed Raven dish
but could be used for other applications. Coach bolts and plugs for fixing to the ground are available from
the installation items page. The weight of this ground stand is 77Kg. (The 2.4m Raven dish weighs 180Kg). The
motorised 2.4m Raven dish needs a pole diameter of 100mm and that stand is below.
A non penetrating mount for this dish is available below.

Click here to order.

Ground stand for the Raven 2.4m
motorised dish



(The Raven dish used to be made by "Andrews" and before that "Channel Master".)
Manufactured by the Satellite Superstore. This stand is 1.6m high and uses a 100mm (4.0") pole.
There are 24 holes for fixing down to concrete or paving. 8 in each corner. It is etch-primed and pained black.
The final coat of paint is baked and oven dried. The stand is bolted together to make it easy to ship. A fully
welded stand of this size could not be transported with a courier and would need a (expensive) haulage company,
so this stand bolts together. Multiple bolts are used for maximum rigidity. The stand is heavy but it needs to be.
This stand is designed for the motorised 2.4m Raven dish but could be used for other applications.
Coach bolts and plugs for fixing the ground are available from the installation items page. This is a special order
item. It is manufactured for the customer when an order is placed. Allow up to 5 working days to
manufacture this stand. The weight of this ground stand is 50Kg. (The 2.4m Raven dish weighs 180Kg)
A non penetrating mount for this dish is available below.

Click here to order.

Non-penetrating ground stands
for all Raven dishes.





Non-penetrating ground stand. Primesat GS750NP (Patio Mount)
Material - Steel powder coated. Height - 1.0m, 1.5m and 2.0m. Pole diameter -76mm. Base - 1200mm X 1200mm. Dipped
These patio mounts can be weighted down with 4 x 600mm x 600mm paving stones, blocks, sandbags etc. or by filling
the square recesses with concrete. These are ideal for a flat roof where fixings are not possible.
Please note the prototypes shown in the top two pictures do not show the additional 4 side supports which are
now fitted as standard. The side supports increase the rigidity and strength of these mounts.
The side supports are shown in the bottom picture. Indeed this is a picture of some custom made stands for a high rise building in
central London. These stands had additional wall mounts bolted to them. The one in the foreground was for the Raven 2.4m
dish and has a 6.5" diameter pole. The one in the background is for a Raven 1.8m dish and has a 4.5" pole.
Also notice the extra ballasts frames bolted onto the main non-penetrating ground frame
. The 76mm pole 1.0m high mount is suitable for the Raven 1.2m dish and many other applications.
The 76mm pole 1.5m high mount is suitable for the Raven 1.8m motorised dish and many other applications.
The 115mm pole mount is suitable for the Raven 1.8m fixed dish and many other applications. We can custom make any of these
mounts for you if you have a different requirement just as we did for the customer in central London.

Click here to order.

Primesat wall mount for the 1.8m
Raven dish



(The Raven dish used to be made by "Andrews" and before that "Channel Master".)
Manufactured by the Satellite Superstore. This is our own mount. It is designed for the 1.8m fixed Raven dish
It has a 115mm (4.5") pole. Heavy box section for rigidity is used. The 2 side supports have an angle of
50 degrees or 25 degrees each from the centre. There are 30 holes for fixing to the wall. Bolt together. It is
etch-primed and powder coated black. The final coat of paint is baked and oven dried. The mount is bolted together to
make it easy to ship. A fully welded stand of this size could not be transported with a courier and would need an
(expensive) haulage company, so this stand bolts together. Multiple bolts are used for maximum rigidity. The mount
is heavy but it needs to be. The pole is 1m high. 60cm is within the side supports and 40cm above for the AZEL mount.
Although designed for the 1.8m Raven dish but could be used for other applications. There are 3 versions of this mount -
1. Fixed mount with 1m stand-off distance. If the wall is not south facing and dish needs turning to point up or down
the street, this maximum stand-off distance is required.
2. If the wall is south facing, a smaller stand-off version of 85cm is available for the fixed Raven dish.
3. A version of the mount is available below for the motorised version of the Raven dish. (80mm diameter pole)
The motorised version needs a 1m stand-off distance so that the dish can turn in each direction.
4. If the fixed dish is going onto an eastern or western facing wall and a maximum stand-off is required, we can
custom make / alter the angle of the side supports to be less than 25 degrees on 1 side and more than 25 degrees on
the other side. (to make sure the edge of dish can be turned fully without touching the side supports).
You would need to contact us to incorporate these (No. 4.) requirements We have manufactured mounts for this dish
since 1991.
needs a pole diameter of 80mm and that mount is below.
Coach bolts and plugs for fixing the ground are available from the installation items page. This is a special order item.
It is manufactured for the customer when an order is placed. Allow up to 3-5 working days to manufacture this mount.

Click here to order.

Primesat Pole Adapter 453.



The Primesat Pole Adapter 453 is designed to fit on a 115mm (4.5") pole and convert it to a 76mm (3") pole.
An example of it's use would be to convert a Raven (formally "Andrews" and before that "Channel Master") fixed
1.8m dish to a motorised dish. This Raven dish uses an AZEL mount which fits on a 115mm (4.5") pole, however,
the Primesat polar mount / motor unit for this dish is designed for an 80mm pole. This pole adapter will convert
an existing ground stand to 76mm. The Primesat motor unit will fit on a 76mm pole but it has a better fit if the
76mm to 80mm Primesat Shim is used. See below. 80mm poles are not a standard size in the UK and so this
shim was developed to make a perfect fit between the Primesat motor unit and the Primesat pole adapter.
The length of the 115mm tube is 300mm and the length of the 76mm tube is 300mm. It is likely that the pole
adapter would raise the height of the ground stand by about 100mm but if necessary the 76mm pole could be
trimmed down if needed. Four strong heavy duty bolts hold the 115mm collar to the ground stand. If a motorised
Raven 1.8m dish and stand is being purchased from us, we can supply the Primesat 115mm ground stand
which is already 76mm diameter and the shim is included for perfect fit. With the correct stand, the pole adapter
is not needed. It is only needed if the customer already has a stand of 115mm and wants to convert the dish to
motorised use using our motor unit and the existing stand. Please note this is a special order item and is
manufactured for the customer when an order is placed and charged. Allow up to 5 working days.
Also note - we have manufactured ground stands, wall mounts and adapters for satellite dishes
including the Raven / Channel Master 1.8m dish since 1991.

Click here to order.
