1.2m Cahors motorised dish.
Cahors 1.2m dish. "Probably the best 1.2m dish in the world" The one piece reflector is
thermoset-molded glass fiber reinforced polyester for strength and rigidity and surface accuracy.
An ultimate dish system for enthusiasts. Gain 42.0 dBi at 11.95Ghz. 3dB beamwidth - 1.6

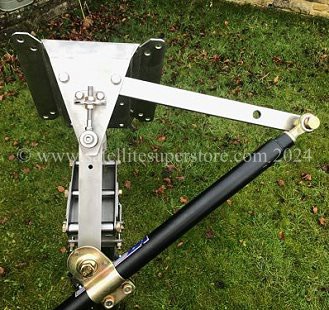

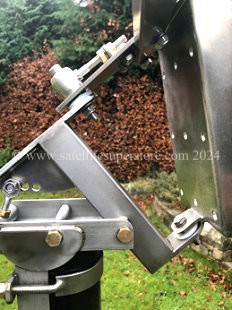

degrees. Cross polarisation - 30dB. The new Primesat
CH12MK5 heavy duty polar mount and actuator is designed for
the 1.2m Raven dish. The new Mk 5 has been completely redesigned compared to earlier versions. This mount is
produced by our sister company
www.primesat.eu for the Satellite Superstore. It is designed for the 1.2m Cahors dish.
This mount is very well designed. The dish does not stand a long was away from the pole. With this latest Mk 6 version,
the mount is a close and well balanced assembly. The framework is very strong and well engineered. Fine adjustment is
easy with a spanner. Primesat CH12MK5 heavy duty polar mount and actuator. The polar mount is Stainless Steel
All of the nuts and bolts are made of stainless steel except the main elevation and declination adjusters
which are made of brass. The polar mount fits on the back of the cahors fibre glass 1.2m dish using
the 4 bolts that come with the Cahors dish. A genuine Superjack
18" actuator is
included. This dish / polar mount motor unit is designed to clamp onto a 76mm diameter pole (70cm - 90cm).
An ideal ground stand is the Primesat
GS761FW3 stand but see a option below. An ideal
wall mount is the Primesat
WMS45076 mount. 4 core motor
control cable for this motor is available.
V Box option. Using a Diseqc satellite receiver, a
V Box is also needed, or a V Box can just be used as a
separate positioner as it comes with it's own remote control. The V Box in automatic mode converts Diseqc
commands to 36 volt positioning and only the satellite receivers remote is used. It also introduces more power to
drive heavier duty 36 volt motors. Spare parts are also available for this dish.
LNB options below. There are many LNB options. LNB not included unless an option is chosen. There are 40mm
clamp universal LNB options. If a wideband LNB is to be required, choose the hybrid 40mm LNB as it has universal
outputs as well. If wideband LNB outputs are required they must be 40mm and there are no c120 flange wideband
LNBs available. This is also the case with the fibre headend.
Wall mount and
ground stand options below. A heavy duty Primesat wall mount or ground stand is also available.
Heavy duty
above the gutter wall mounts can be ordered separately with 2m long, 76mm diameter
(3-inch) poles and
100mm,
300mm,
450mm, and
550mm stand-off distances to clear gutters.
Non-pentrating ground stand. A heavy duty Primesat non-penetrating
ground stand is available separately.
C Band LNBs can be selected separately by ordering a C band stainless steel feed
support clamp and a
C Band LNB
Shipping information and options. (
VAT info.) (
Stock levels.)
Choose either "
free mainland UK delivery" - UK shipping
option No 1 or
priority options 4-7.
For "
UK offshore islands including Northern Ireland by courier" choose the
£89.00 shipping option.
International - To all locations choose the "
International shipping quote by e-mail" option.
1.2m Cahors dish, heavy duty polar mount, 18-inch HARL 3618 actuator.
Order code CA12PMAC
£1179.95
Options, if required, will be automatically added to the dish when you "add to cart" below.
If you are outside of the UK, a 20% VAT refund will be done before shipping.
cahors 1.2m motorised dish options. Click on picture for more Info.

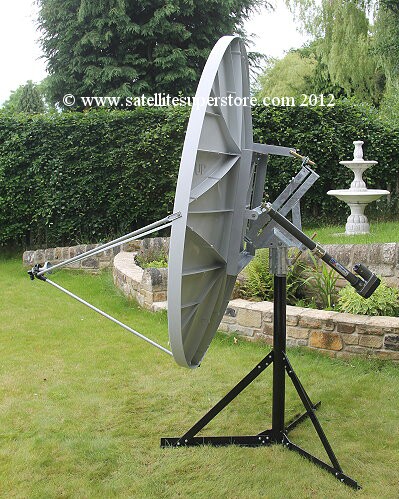

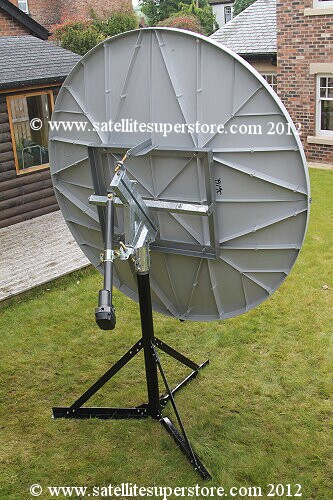

Raven 1.8m motorised dish kit.
This Raven 1.8m dish is probably the best 1.8m dish available anywhere. The one piece reflector is thermoset-molded
glass fiber reinforced polyester for strength and rigidity and surface accuracy. An ultimate dish system for enthusiasts.
Gain is a massive 45.5 dBi (Ku band). Beam width 1.0 degrees, Noise Temp. 31K Cross polarisation 30dB.
Heavy duty Raven 1.8m motorised dish kit including a polar mount which is designed and built by the Satellite Superstore,
heavy duty actuator and optional Raven matched feedhorn with C120 flange LNB. This is a Raven Skyware Global (formerly
Andrews and before that Channel Master) 1.8m dish. Very high gain one piece proven design. The motor unit is a Primesat
CH18MK2 polar mount and SuperJack actuator. The polar mount is dipped galvanised with a steel back plate to fit the
Raven 1.8m dish. All of the bolts and nuts are stainless steel and the elevation adjusters are made of brass. A heavy
duty Superjack 18"
actuator
is included. The complete motor kit is also available separately on our
motors
page.
V Box option. Using a Diseqc satellite receiver, a
V Box is also needed, or a V Box can just be used as a
separate positioner as it comes with it's own remote control. The V Box in automatic mode converts Diseqc
commands to 36 volt positioning and only the satellite receivers remote is used. It also introduces more power to
drive heavier duty 36 volt motors. Spare parts are also available for this dish.
Motor control cable. 4 core motor
control cable is available separately.
LNB options below. There are many LNB options. LNB not included unless an option is chosen. There are 40mm
clamp universal LNB options. If a wideband LNB is to be required, choose the hybrid 40mm LNB as it has universal
outputs as well. If wideband LNB outputs are required they must be 40mm and there are no c120 flange wideband
LNBs available. This is also the case with the fibre headend.

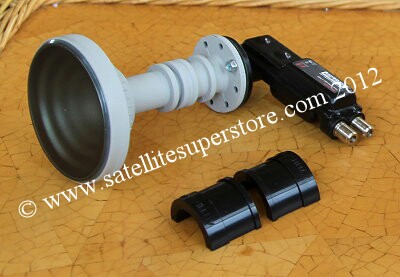

Feedhorn c120 LNB options. When using universal LNBs, the matched feedhorn and c120 flange LNB is best. A
matched feedhorn will maximise signal capture in low signal locations and is available with several c120 flange LNB options
Wall mount or
ground stand. A heavy duty Primesat
wall mount or
ground stand are available separately.
Non-pentrating ground stand. A heavy duty Primesat non-penetrating
ground stand is available separately.
C Band LNBs can be selected separately by ordering a C band stainless steel feed
support clamp and a
C Band LNB

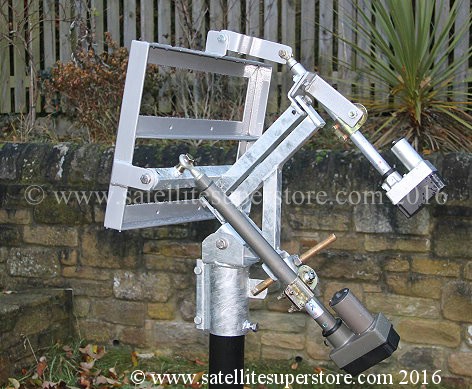

An
inclined orbit motorised version and a
fixed version of this dish are also available.
Shipping information and options. (
VAT info.) (
Stock levels.)
Choose "
free* mainland UK delivery" - UK shipping
option No 1 (see exception below*)
* Free mainland delivery to most postcodes but some postcodes, highlands and remote locations may require a surcharge
All UK offshore islands. Shipping will carry an additional surcharge.
Email or
ring 01207 544664.
All internationals. Shipping to all destinations is by quotation.
Email or
ring +44 1231 544664 (GMT).
Raven 1.8m motorised dish, polar mount, heavy duty QARL 3618 18 inch actuator
Order code RA18PMAC
£1979.95
Options, if required, will be automatically added to the dish when you "add to cart" below.
If you are outside of the UK, a 20% VAT refund will be done before shipping.
Raven 1.8m motorised dish options. Click on picture for more Info.

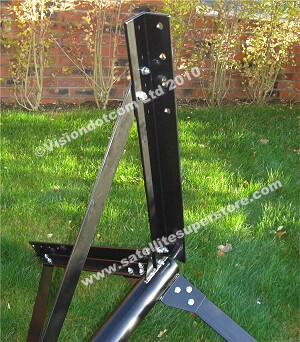

Adjustable feet for motorised use.
This is a worthwhile addition when ordering a 76mm (3-inch) ground stand. Feet are not included as
standard with the stand above. Using the 1.8m stand above, for motorised use, to make the pole plumb, we would
recommend at least 6 feet and preferable 9 although up to 12 can be used. It will therefore be necessary to add
this option more than once. Manufactured by the Satellite Superstore. An exclusive high quality product.
Adjustable feet for motorised use.
Our own "Primesat Vision" heavy duty range. Manufactured since 1991.
Adjustable feet option when you buy a 1.8m Primesat dish. To buy these feet separately go to the
Ground Stands page.
Click here to order

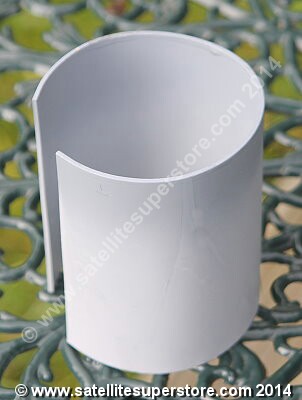

Primesat 7680 Shim (spacer).
This shim is designed to convert a 76mm pole to 80mm.
Example of use - the
Primesat motor unit
for the motorised Raven (formally "Andrews" and before that "Channel Master")
1.8m dish is designed for an 80mm pole but will fit on a 76mm pole. It is, however a better fit if the 76mm to 80mm
Primesat shim is used. 80mm poles are not a standard size in the UK and so this shim was developed to make a perfect
fit between the Primesat motor unit and a 76mm (3inch) pole.
2nd Example - the
Primesat motor unit for the
motorised Raven (formally "Andrews" and before that "Channel Master")
1.2m dish is designed for an 80mm pole but will fit on a 76mm pole. It is, however a better fit if the 76mm to 80mm
Primesat shim is used. 80mm poles are not a standard size in the UK and so this shim was developed to make a perfect
fit between the Primesat motor unit and a 76mm (3inch) pole.
Note - we have manufactured ground stands, wall mounts and adapters for satellite dishes including
the Raven / Channel Master 1.8m dish since 1991.
Click here to order.

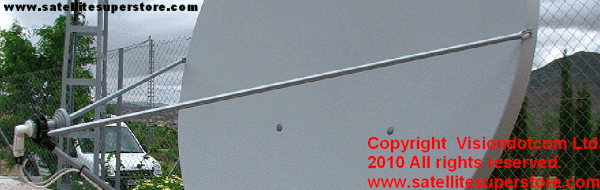

C Band Feed Support Boss for Raven Dish.
Designed for the
Raven fibre glass offset dishes, 0.9m, 1.0m,
1.2m, 1.8m and
2.4m
Note, Raven dishes were formerly "Andrews" and before that "Channel Master".
This is a high quality stainless steel bracket / feed support boss for C Band LNBs with an offset feedhorn. (60mm)
It cames with extra parts so that a Raven Ku band feedhorn or Ku Band LNBF (universal LNB) can also be fitted. (40mm)
At last a very high quality product made from stainless steel for fitting C band LNBs onto the Raven offset dish.
Click here to order.
Raven Spare Parts.

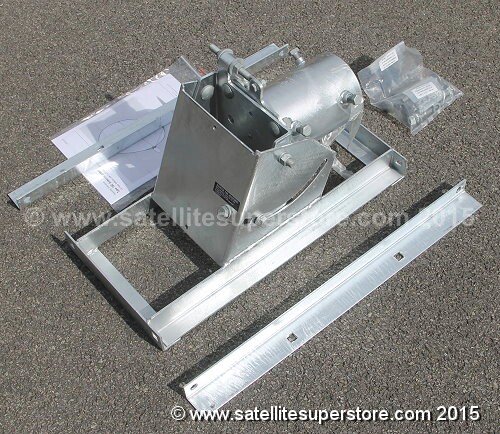

Raven 1.8m EZEL fixed mount.
A fixed AZEL mount for the back of the Raven 1.8m dish is available separately. It is now galvanised.
The mount fits on the back of the Raven 1.8m dish face and the collar fits a 4.5 inch pole or
ground stand.
Click here to order.

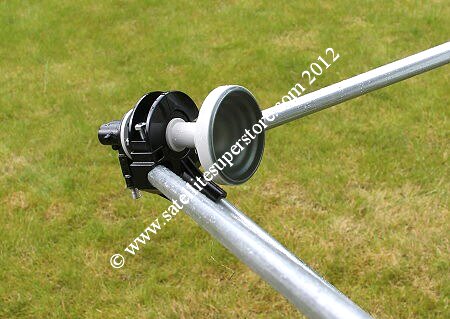

Raven feed support boss.
This is the feed support clamp that fits on the ends of 3 arms of the Raven
(formally Andrews and before that Channel Master) 90cm, 1.0m, 1.2m 1.8m and 2.4m offset dishes.
This is a 40mm clamping LNB support boss. Bolts nuts and washers are included.
In stock and ready for immediate shipping.
Raven feedhorn support boss assembly
In stock and ready for immediate shipping
Click here to order.
C Band Feed Support Boss for Raven Dish.
Designed for the
Raven fibre glass offset dishes, 0.9m, 1.0m,
1.2m, 1.8m and
2.4m
Note, Raven dishes were formerly "Andrews" and before that "Channel Master".
This is a high quality stainless steel bracket / feed support boss for C Band LNBs with an offset feedhorn. (60mm)
It cames with extra parts so that a Raven Ku band feedhorn or Ku Band LNBF (universal LNB) can also be fitted. (40mm)
At last a very high quality product made from stainless steel for fitting C band LNBs onto the Raven offset dish.
Click here to order.

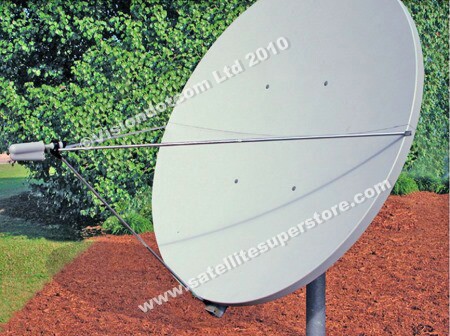

Raven 2.4m motorised dish
This is a Raven, Skyware Global (formerly Andrews and before that Channel Master) 2.4m dish.
Raven / Primesat motorised 2.4m dish kit. CM24PR36I. Heavy duty Raven 2.4m motorised dish kit including Primesat
polar mount, heavy duty actuator and LNB options. Very high gain one piece proven design. The one piece reflector
is thermoset-moulded glass fibre reinforced polyester for strength and rigidity and surface accuracy.
Technical - Gain 47.6 dBi at 11.95Ghz. 3dB beamwidth - 0.7 degrees. Cross polarisation - 30dB, Collar fits a 100mm pole.
An ultimate dish system for enthusiasts.

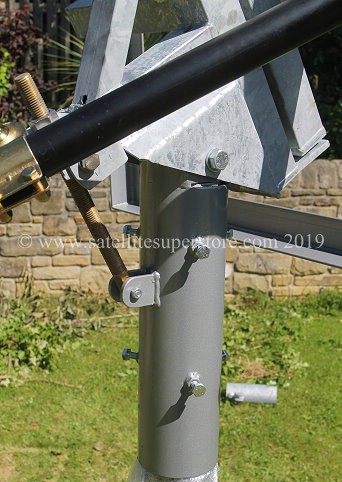

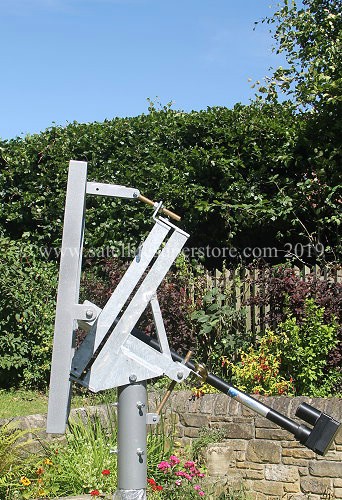

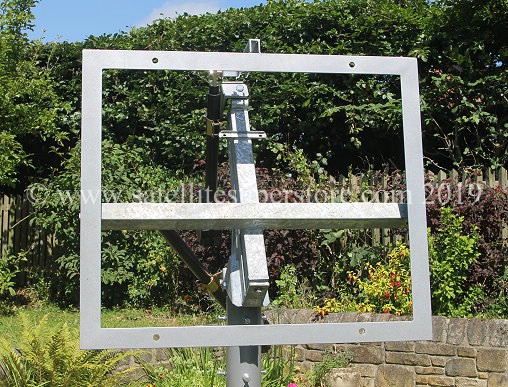

The motor unit is a Primesat CH24100
polar mount and 36 inch SuperJack QARL-3636+ heavy duty
actuator
actuator. The polar mount is dipped galvanised with a steel back plate to fit the Raven 2.4m dish. All of the
nuts & bolts are stainless steel and the elevation adjusters are made of brass. A matched Raven feedhorn is
highly recommended for this Raven 2.4m dish and is an option. Using a matched feedhorn with a C120 flange LNB
provides better matching and more good signal (a higher signal to noise ratio) than a standard 40mm clamp LNB.
It is best not to invest in a high quality Raven dish and use a compromise 40mm mass market LNB where the
integrated feedhorn is designed for ANY dish but is not matched.? Taking this 2.4m dish as an example, a
40mm LNB may only illuminate 2.3m of dish area or perhaps 2.5m of dish area (i.e. including noise from round
the edges) but with a matched feedhorn, exactly 2.4m of dish area is illuminated. C120 LNB options below.
V Box option. Using a Diseqc satellite receiver, a
V Box is also needed, or a V Box can just be used as a
separate positioner as it comes with it's own remote control. The V Box in automatic mode converts Diseqc
commands to 36 volt positioning and only the satellite receivers remote is used. It also introduces more power to
drive heavier duty 36 volt motors. Spare parts are also available for this dish.
Motor control cable. 4 core motor
control cable is available separately.
LNB options below. There are many LNB options. LNB not included unless an option is chosen. There are 40mm
clamp universal LNB options. If a wideband LNB is to be required, choose the hybrid 40mm LNB as it has universal
outputs as well. If wideband LNB outputs are required they must be 40mm and there are no c120 flange wideband
LNBs available. This is also the case with the fibre headend.
Feedhorn c120 LNB options. When using universal LNBs, the matched feedhorn and c120 flange LNB is best. A
matched feedhorn will maximise signal capture in low signal locations and is available with several c120 flange LNB options
Ground stand. A heavy duty Primesat
ground stand is available separately.
Non-pentrating ground stand. A heavy duty Primesat non-penetrating
ground stand is available separately.
C Band LNBs can be selected separately by ordering a C band stainless steel feed
support clamp and a
C Band LNB

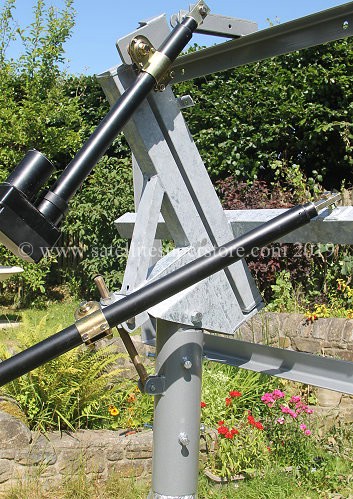

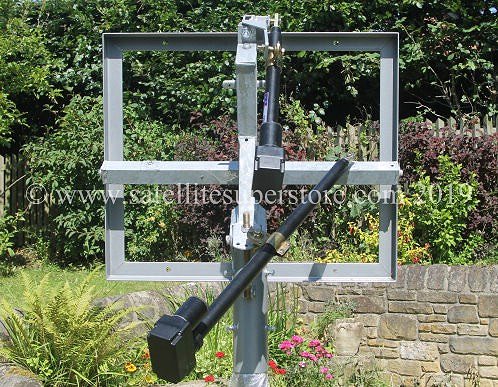

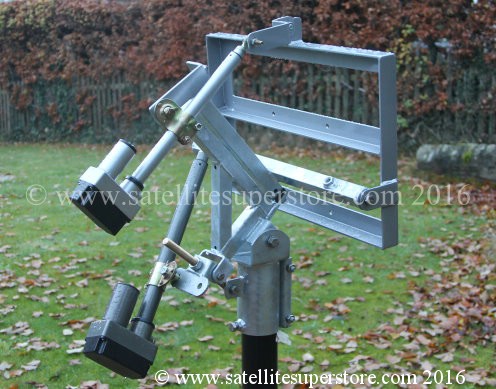

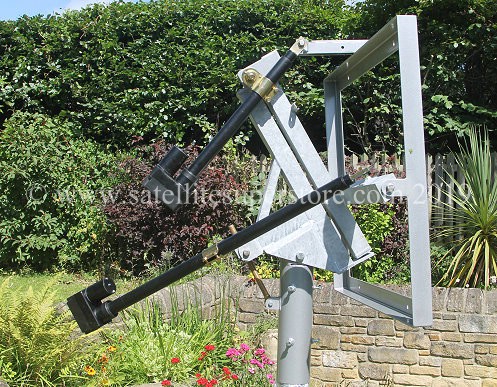

An
inclined orbit motorised version and a
fixed version of this dish are also available.
Shipping information and options. (
VAT info.) (
Stock levels.)
Choose "
free* mainland UK delivery" - UK shipping
option No 1 (see exception below*)
* Free mainland delivery to most postcodes but some postcodes, highlands and remote locations may require a surcharge
All UK offshore islands. Shipping will carry an additional surcharge.
Email or
ring 01207 544664.
All internationals. Shipping to all destinations is by quotation.
Email or
ring +44 1231 544664 (GMT).
Raven 2.4m motorised dish, polar mount, heavy duty 36 inch QARL 3636 actuator
Order code RA24PMAC
£4319.95
Options, if required, will be automatically added to the dish when you "add to cart" below.
If you are outside of the UK, a 20% VAT refund will be done before shipping.
Raven 2.4m motorised dish options. Click on picture for more Info.
C Band Feed Support Boss for Raven Dish.
Designed for the
Raven fibre glass offset dishes, 0.9m, 1.0m,
1.2m, 1.8m and
2.4m
Note, Raven dishes were formerly "Andrews" and before that "Channel Master".
This is a high quality stainless steel bracket / feed support boss for C Band LNBs with an offset feedhorn. (60mm)
It cames with extra parts so that a Raven Ku band feedhorn or Ku Band LNBF (universal LNB) can also be fitted. (40mm)
At last a very high quality product made from stainless steel for fitting C band LNBs onto the Raven offset dish.
Click here to order.
Raven 2.4m inclined orbit motorised dish.
Raven 2.4m dish with inclined orbit polar mount using two actuators.
Heavy duty Raven 2.4m dish with inclined orbit polar mount, Raven matched feedhorn and c120 Inverto single LNB.
Click here to order.
The differences between prime focus
and offset dishes.
A prime focus dish is shown above.
This type of dish is circular NOT oval. It has 3 feed support arms (some use 4 arms) and the 3 arms
converge in the centre. Each arm is 120 degrees apart. The feedhorn uses concentric scalar rings.
The concentric scalar rings reduce noise and improve signal to noise ratio with prime focus dishes.
An offset dish is oval and is higher than it is wide (some are wider than they are high). They use either
one feed support arm (at the bottom of the dish - see bottom left hand picture) or 3 feed support arms
(again all in the bottom 1/2 of the dish - see bottom right hand picture). They require a feedhorn
that is in the shape of a horn without scalar rings.
Larger, higher quality offset dishes will use three support arms as the extra two side support arms
provide better rigidity when dish sizes exceed 1.0m. The offset dish shown above right is the
excellent high gain
Raven 1.8m dish.
As a general rule the two types of dishes are simply two ways of doing the same job, however, an
the offset dish, if well engineered usually has significantly more gain than the prime focus dish.
It is never really that simple. It is true that petalised offset dishes usually have poor gain but
a one piece well engineered prime focus dish can be better than a poorly engineered offset dish.
As usual you get what you pay for. Cheap prime focus petalised dishes are to be
avoided and we don't sell them.
Dish sizes disclaimer.
Please not that dish sizes vary.
Manufactures quote a particular size of dish, however, dishes are not circular, they are
oval and the dish diameter referred to in their literature and on our site is an
approximation and should not be taken as an exact dimension.
See our other web site at-
www.primesat.eu
This site includes many products that are exclusive to the Satellite Superstore.
The site contains -
• Products that we manufacture (e.g. We have manufactured heavy duty wall mounts and ground stands since 1991).
• Selected products which have our own Primesat brand name and have been prepared to our specifications.
• Selected products where we have been appointed the authorised UK or European distributor by the manufacturer.
www.primesat.eu is an information site. Here you will find full specifications and many detailed pictures.
To buy any of these products, simply order them on this web site.
Link to our own satellite museum site
Satellite Museum. A museum of vintage satellite receivers.
See www.satellitemuseum.com
For old satellite receivers with knobs on and read about "A History Of Satellite TV".
Also see
www.rewindmuseum.com. A Museum of vintage consumer electronics.
Vintage reel to reel video recorders. Vintage VHS and Betamax VCRs. Vintage video cameras. Vintage
Laser Disc. Vintage Computers. Old telephones. Old brick mobile phones. Vintage Hi Fi, Old reel
to reel audio and early audio cassette decks. Including, the history time line of vintage
consumer electronics ... and much more .....
It is well worth a visit.
Only The Satellite Superstore brings you
great products, advice and it's own museum.
You may be interested in two other web sites.
www.1952chevytruck.com
This web site shows all of the restoration process and the modifications to this truck.
In addition, there is a hard high quality tonneau cover on a new web site
at www.classictonneaucover.com for the 1947-53 Chevy truck.
Contacting us.
Unlike many other companies we are happy to answer questions on the phone.
Tel. (UK) 01207 544664 and 01207
544224
International Tel. + 44 1207 544664.
Before sending questions via e-mail please check-out our
Frequently Asked Questions as
this could save
time.
If you have any questions & comments regarding this site's content, or you need advice please ....
click here to go to our contact forms.
Copyright © 2019 Vision International. All rights reserved.
