Inclined orbit motorised satellite dishes - Raven 1.2m. Raven 1.8m. Raven 2.4m.

Raven 1.8m inclined orbit motorised dish.

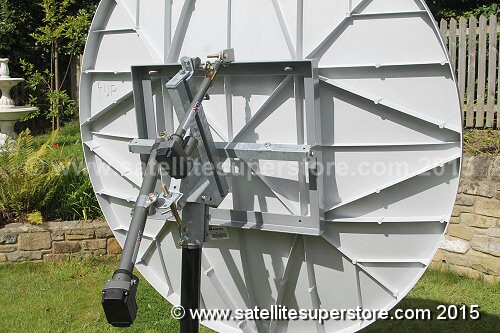

Raven 1.8m dish with inclined orbit polar mount and 2 actuators
Note - Raven Skyware Global dishes were formally "Andrews dishes" and before that "Channel Master".
This Raven 1.8m dish is probably the best 1.8m dish available anywhere. The one piece reflector is thermoset-moulded
glass fibre reinforced polyester for strength and rigidity and surface accuracy. An ultimate dish system for enthusiasts.
Gain is a massive 45.5 dBi (Ku band). Beam width 1.0 degrees, Noise Temp. 31K Cross polarisation 30dB.
An ultimate dish for enthusiasts. For moving east and west, a genuine heavy duty SuperJack 18 inch actuator is included.
The 12 inch HR actuator is for up and down adjustment. This is ideal for tracking inclined orbit satellites.
Two positioners are needed. These can be a Primesat V Box for control of east and west positioning using a modern
satellite receiver in automatic mode and a 2nd V Box in manual mode for up and down elevation acting just as a positioner.
Manual mode would be using the handsets which came with all V Boxes. All satellite positions can be stored. For inclined
orbit satellites a timing chart is useful (ring us for further advice). The inclined orbit motor kit is available separately.
About the motor unit - This motor unit is produced by our sister company www.primesat.eu for the Satellite Superstore.
It is designed for the 1.8m Raven dish. The "dish back plate frame" is etch primed, primed, powder coated and baked in
an oven to provide a durable finish. The rest of the polar mount including the collar is dipped galvanised. All of the nuts
and bolts are made of stainless steel except the main elevation adjuster which are made of brass. The polar mount includes
a frame which is designed to fit on the back of the Raven 1.8m dish using the 4 bolts which come with the Raven dish.
This dish / polar mount motor unit is designed to clamp onto a 80mm diameter pole.
When ordering a stand, a shim is included. The polar mount collar fits an 80mm pole or ground stand.
V Box options. Using a Diseqc satellite receiver, a V Box is also needed, or a V Box can just be used as a
separate positioner as it comes with it's own remote control. The V Box in automatic mode converts Diseqc
commands to 36 volt positioning and only the satellite receivers remote is used. It also introduces more power to
drive heavier duty 36 volt motors. 2 V Boxes are needed. See options below.
LNB options below. There are many LNB options. LNB not included unless an option is chosen. There are 40mm
clamp universal LNB options. If a wideband LNB is to be required, choose the hybrid 40mm LNB as it has universal
outputs as well. If wideband LNB outputs are required they must be 40mm and there are no c120 flange wideband
LNBs available. This is also the case with the fibre headend.
Feedhorn c120 LNB options. When using universal LNBs, the matched feedhorn and c120 flange LNB is best. A
matched feedhorn will maximise signal capture in low signal locations and is available with several c120 flange LNB options
Wall mount or ground stand. A heavy duty Primesat wall mount or ground stand are available separately.
Non-pentrating ground stand. A heavy duty Primesat non-penetrating ground stand is available separately.
C Band LNBs can be selected separately by ordering a C band stainless steel feed support clamp and a C Band LNB
A standard polar mount motorised version and a fixed version of this 1.8m dish are also available.
